1.Brand Name: Betton & OEM
2.Spherical roller bearing types: CC,CA,MB,E,CAK,CAE,CCK series
3.Betton bearing: High precision, long life, low noise, high-end technology, low vibration and conform to the export standard
4.main market: United States,Europe,Asia,Middle East,South Africa etc
5.Application:
Spherical roller bearing is widely used in Steel industry, oil industry, cement industry, mining&construction, papermaking machinery, rolling mill, sugar mill, vibrating screens
,conveyors, air blower, transmissions, and other heavy machinery
1) CA: Integral brass cage, double row symmetrical rollers, inner ring ride
2) MA: Integral brass cage, double row symmetrical rollers, outer ring ride
3) MB: Two piece brass cage, double row asymmetrical rollers, inner ring ride
4) CC: Two piece steel cage, double row symmetrical rollers, inner ring ride
5) CTN1: Double row symmetrical rollers, nylon cage
6) K: Tapered bore bearing, the taper is 1: 12
7) K30: Tapered bore bearing, the taper is 1: 30
8) W33: With lubrication groove in outer ring, with three oil holes
Pdoduct details
| Products name | spherical roller bearings |
| Precision | ABEC-1 ABEC-3 ABEC-5 ABEC-7 ABEC-9 (P0 P6 P5 P4 P2) |
| Material | Chrome Steel, Stainless Steel, GCr15, Carbon steel |
| Closures | Open, metal Sealed, rubber sealed, Nylon sealed |
| Types | open,Z,ZZ,RS,2RS,RZ,2RZ. For non standard bearing,there are many different types with various sizes for our clients and we can also design or develop customized products as per the samples or drawings provided by our clients. |
| Delivery date | Normally ready goods and stock within 5-30days |
| Payment terms | A:100% TT B: 30% T/T in advance .70% against copy of B/L C.30% T/T in advance .70% against L/C at sight D.Western union F. Others |
| Application | withstand heavy load and impact load, precision instruments, low noise machine, automobile, motorcycle, metallurgy, rolling mill, mine, petroleum, papermaking, cement, the sugar industry, general machinery, etc. |
| Package | 1.poly bag +box+carton 2.the users who have any requirement in packing may write them in the contract ( customized ) |
Application
Spherical bearings are used in countless applications, wherever rotational motion must be allowed to change the alignment of its rotation axis. A prime example is a tie rod on a vehicle suspension. The mechanics of the suspension allow the axle to moveup and down, but the linkages are designed to control that motion in one direction only and they must allow motion in the other directions. Spherical bearings have been used in car suspensions, driveshafts, heavy machinery, sewing machines, and many other applications.

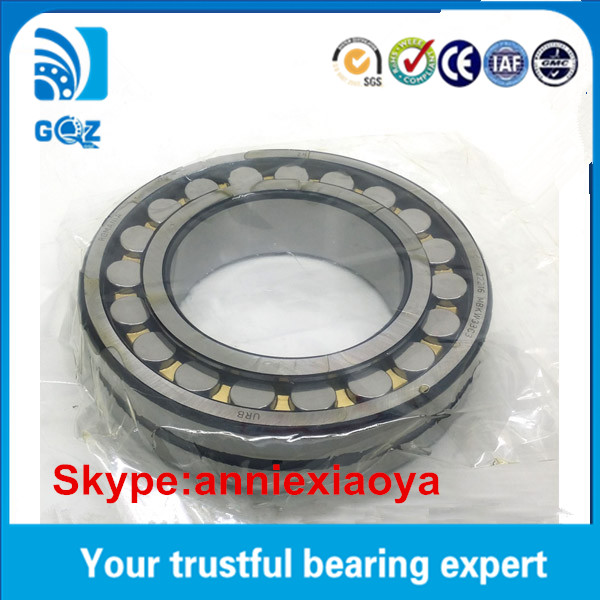

Spherical roller bearing:
1,this type of bearings have two row of rollers, a common sphered outer ring raceways and two inner ring raceway inclined at an angle ti the bearing axis. the centre point of the sphere in the outer ring raceways is at the bearing axis.
2, spherical roller bearings classification:
C series : no inner wall
and the use of pressed steel cage
CA series:both sides of the inner walls
and the use of the car solid cage
